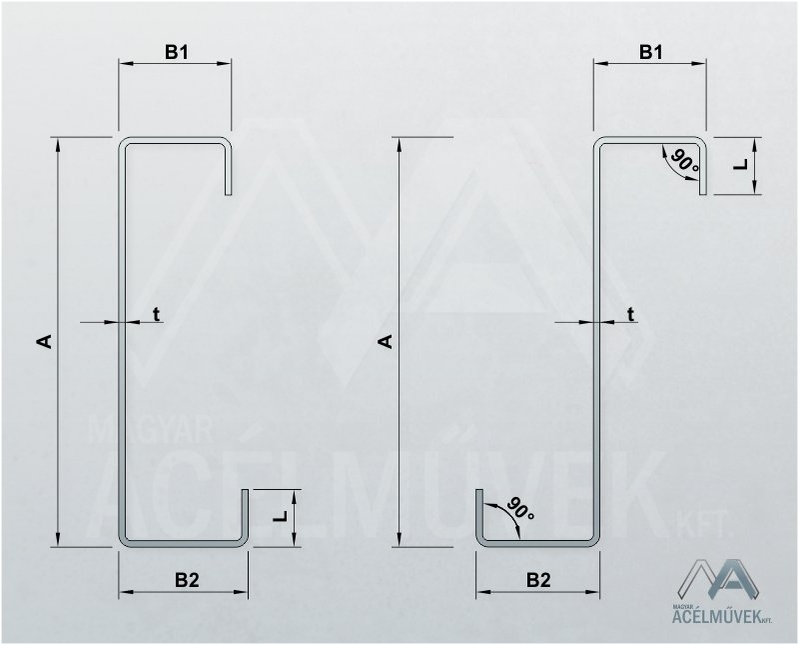

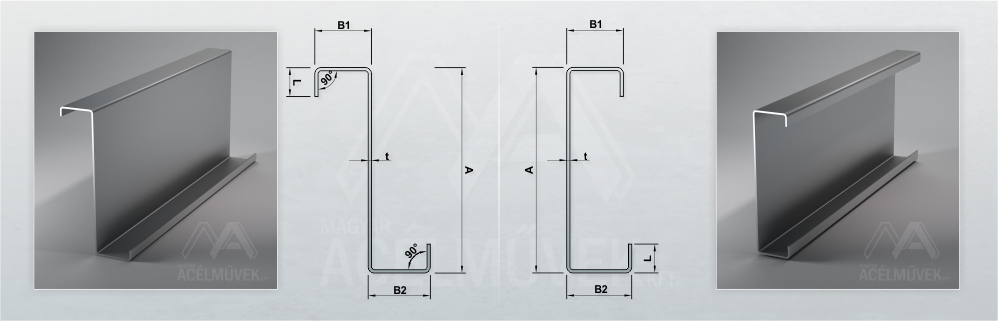

Z/C purlin

The newest products of our company are the Z and C profiles which are produced at the new rollforming line.



Quality:  S350 GD
Coating:  Z 275
Punching and length tolerance:  +/- 1.0 mm
Length:  1m - 15m
Thickness:  1.5 mm - 2.5 mm
Documentation:

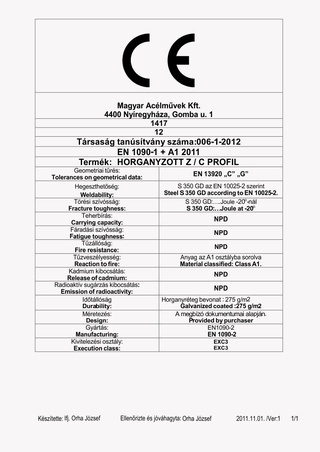

  • CE excellent certification according to EN 1090-2
  • 3.1 quality certification
  • Producer declaration

Punching:

Circle holes [mm] :                12; 14; 18; 20;

Oval holes [mm]:                  12/20; 14/20; 12/50.  in parallel or perpendicularly according to your wish.

                                           Other special size are possible according to your wish.
                                           In this case we produce the appropriate punching die.

Maximum hole number:         23 pairs, in 3 different sizes for every piece.

 Distinctive competitive advantage

  • Due to our innovative technology our company rolls not only the standard purlins but the special unique sizes too, which could be produced with bending machine so far. For example: Z 215X53/55, if you need this.

  • You can order our products with pre-punched, after galvanized, and with pre-galvanized edges too, so there is no chance for the corrosion of the products. It is appropriate for our customers who want the best quality.

  • Punching can be ordered not only at the backbone of the profiles but on the different parts of the lower or top side.
